HT Brace v1.1 For Race Exhausts 125-180cc

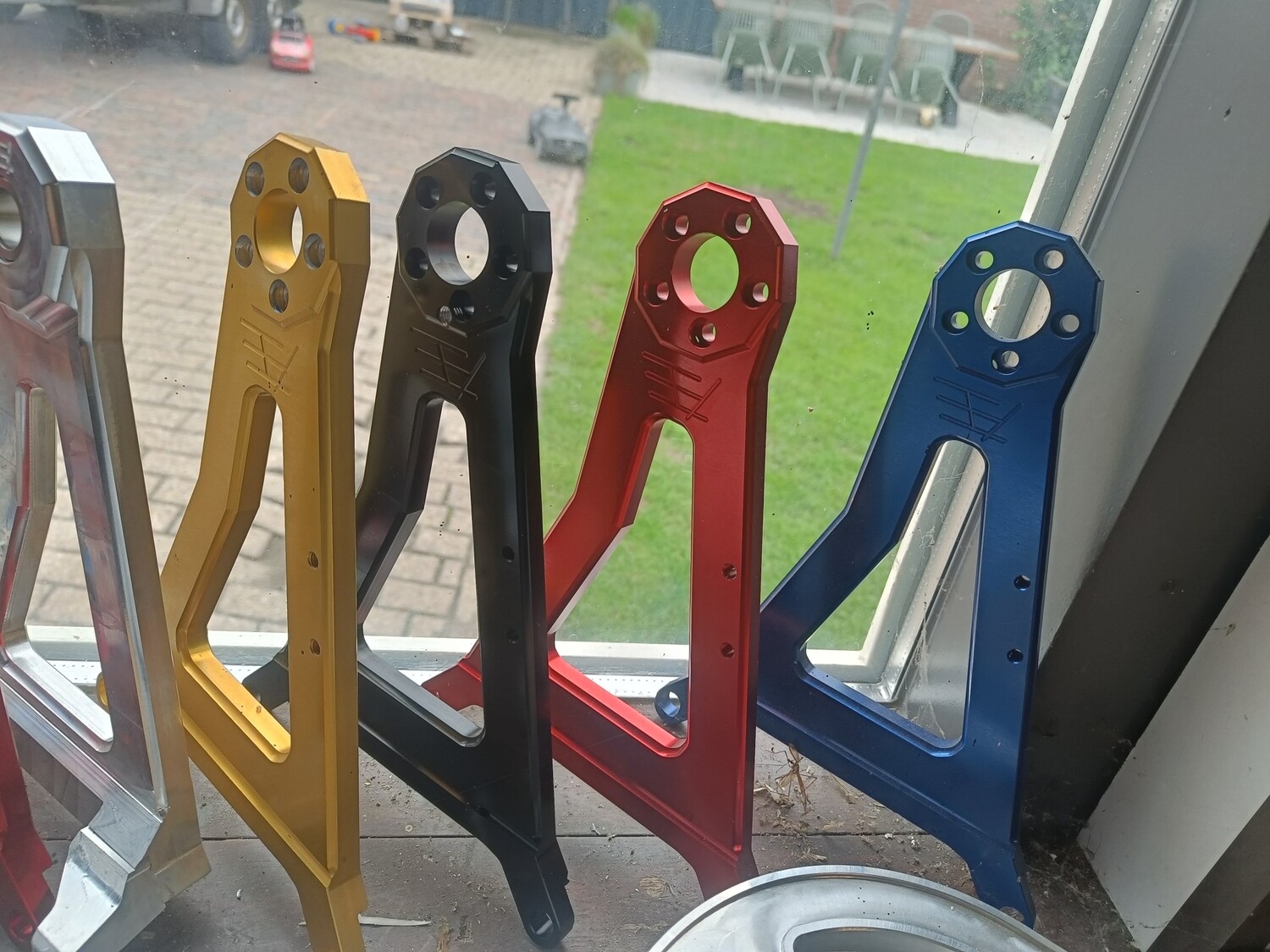

HT Brace v1.1 for race exhausts.

This brace can only be used with a race exhaust, this one does not fit with an original exhaust!

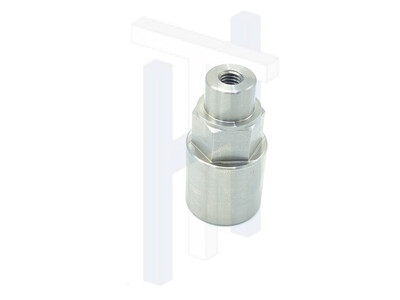

The brace comes complete with: 1x high tension nut, 1x bearing holder, 1x bend split pen, 1x straight split pen, 5x washers, 5x small bolts and 2x big bolts. (Note: use the bend pen for single disc and the straight pen for double disc engines)

The HT Braces fit on to the following engines:

·Aprilia SR 125 (1999-2001, ZD4PX)

·Aprilia SR 150 (1999-2001, ZD4PX000)

·Gilera Runner 125 FX (1997, ZAPM07000)

·Gilera Runner 125 FX (1999, ZAPM07000)

·Gilera Runner 125 FX (2000, ZAPM07000)

·Gilera Runner 125 FX (2001, ZAPM07000)

·Gilera Runner 125 FX (2002, ZAPM07000)

·Gilera Runner 125 FX (2003, ZAPM07000)

·Gilera Runner 180 FXR (1999, ZAPM08000)

·Gilera Runner 180 FXR (2000, ZAPM08000)

·Gilera Runner 180 FXR (2001, ZAPM08000)

·Gilera Runner 180 FXR (2002, ZAPM08000)

·Gilera Runner 180 FXR (2003, ZAPM08000)

·Gilera Runner 180 FXR (1997, ZAPM08000)

·Italjet Dragster 125

·Italjet Dragster 180

·Piaggio Hexagon 125 (1997, EXS1T)

·Piaggio Hexagon 125 (1998, EXS1T)

·Piaggio Hexagon 125 (1996, EXS1T)

·Piaggio Hexagon 125 LX (1998, ZAPM05000)

·Piaggio Hexagon 150 (1995, EXV1T)

·Piaggio Hexagon 150 (1996, EXV1T)

·Piaggio Hexagon 150 (1997, EXV1T)

·Piaggio Hexagon 150 (1998, EXV1T)

·Piaggio Hexagon 150 (1994, EXV1T)

·Piaggio Hexagon 180 LXT (1998, ZAPM06000)

·Piaggio Hexagon 180 LXT (2000, ZAPM06000)

·Piaggio Hexagon 180 LXT (1999, ZAPM06000)

·Piaggio Skipper 125 (2-stroke, 1998, ZAPM12000)

·Piaggio Skipper 125 (2-stroke, 1999, ZAPM12000)

·Piaggio Skipper 125 (2-stroke, 2000, ZAPM12000)

·Piaggio Skipper 150 (2-stroke, 1998, ZAPM13000)

·Piaggio SKR 125 (1995, CSM1T)

·Piaggio SKR 125 (1996, CSM1T)

·Piaggio SKR 125 (1997, CSM1T)

·Piaggio SKR 150 (1996, CVM1T)

·Piaggio SKR 150 (1997, CVM1T)

·Piaggio SKR 150 (1998, CVM1T)

·Piaggio Typhoon 125 (1995, ZAPM02000)

·Piaggio Typhoon 125 (1996, ZAPM02000)

·Piaggio Typhoon 125 (1997, ZAPM02000)

·Piaggio Typhoon 125 (1998, ZAPM02000)

·Piaggio Typhoon 125 X (2000, ZAPM02000)

·Piaggio Typhoon 125 XR (2002, ZAPM02000)

·Piaggio Typhoon 125 XR (2003, ZAPM02000)

·Piaggio Typhoon 125 XR (2001, ZAPM02000)
